Prototype 1

One drawing sheet: a plan in the middle, its wall elevations laid flat around it. Scroll, and each wall folds up into the room.

Scroll to fold
01 · The sheet

Plan and elevations, flat

The CAD sheet draws itself: the plan with the sink run, and three elevations hinged to its walls. The dashed edge marks the open side.

Draw
02 · First wall

Tall units rise from the edge

The first elevation swings up on its floor line and lands on the wall it describes.

Fold
03 · Second wall

The side wall stands

The second elevation folds up along the side wall, closing the corner.

Fold
04 · Third wall

The cooking wall closes the room

The last elevation, with its slatted panel, swings over and stands opposite the first.

Fold
05 · The room

One sheet, one room

Plan and elevations now describe the same volume, which gives way to the 3D study.

Design development

Design 1 against the revised design

The revision reworked the layout and grew the kitchen from 13.5 to 15.5 m². Drag to compare.

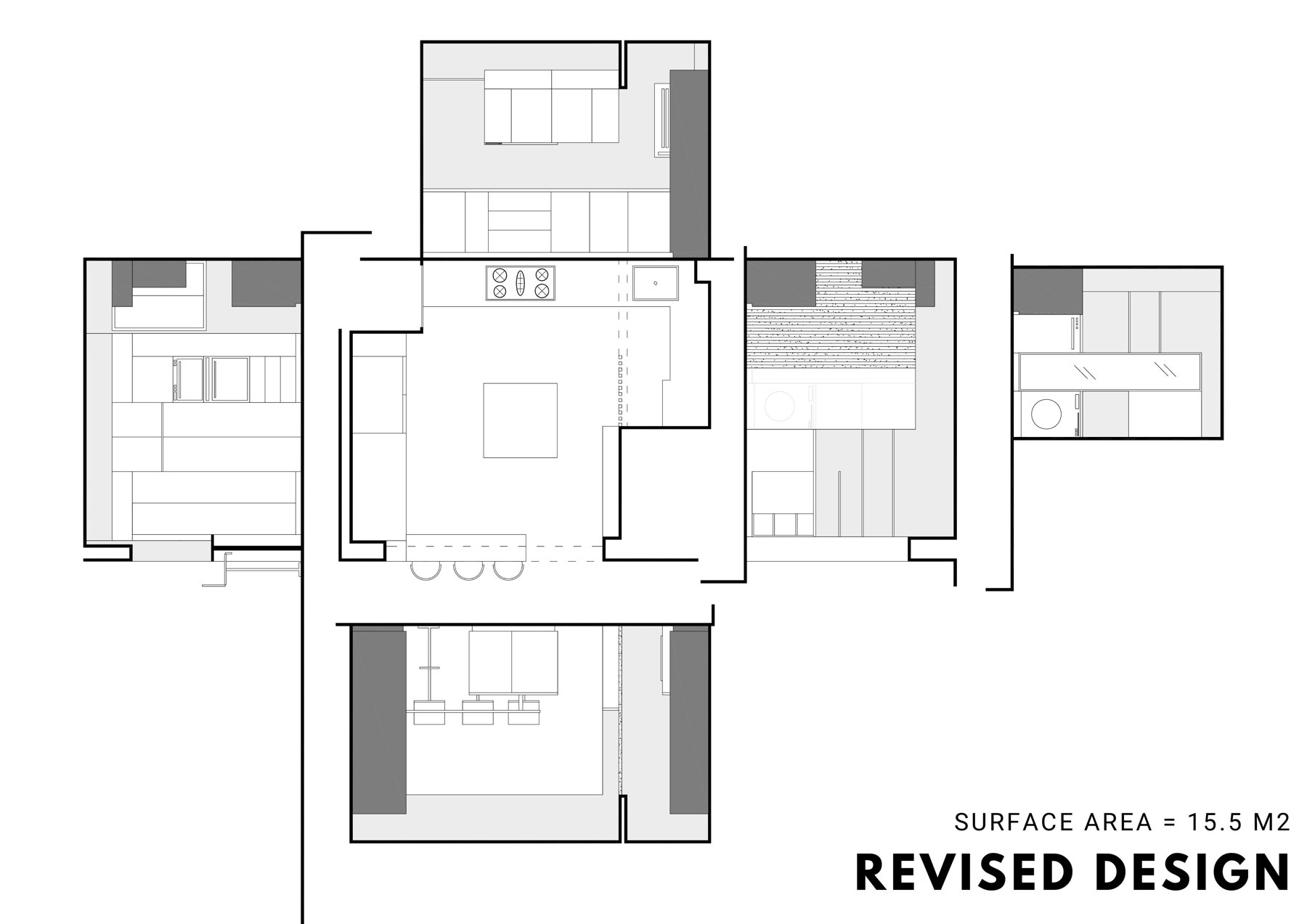

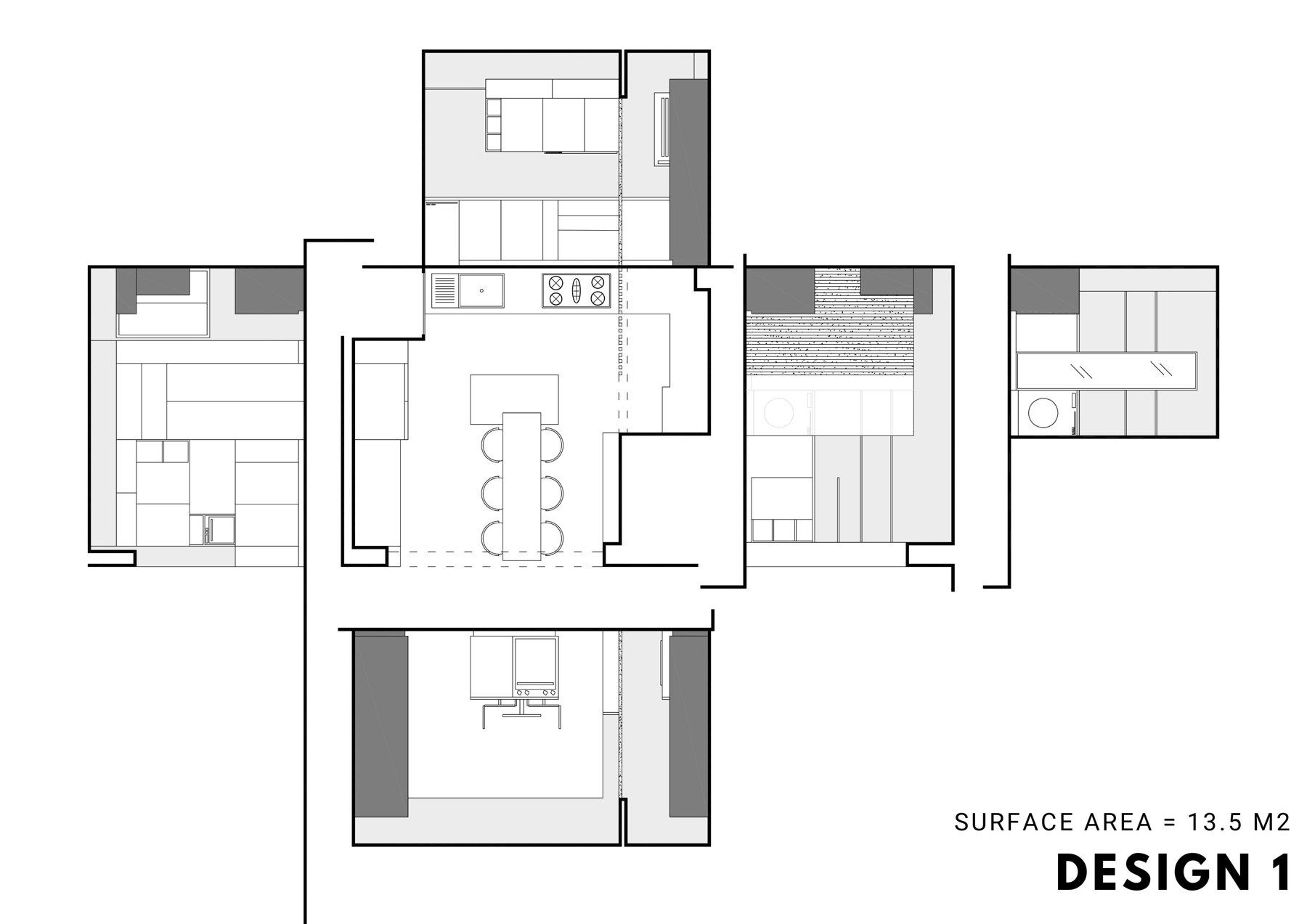

Design 1 plan and elevations, 13.5 square metres Revised design plan and elevations, 15.5 square metres
Design 1 · 13.5 m²Revised · 15.5 m²
3D study

Views of the volume

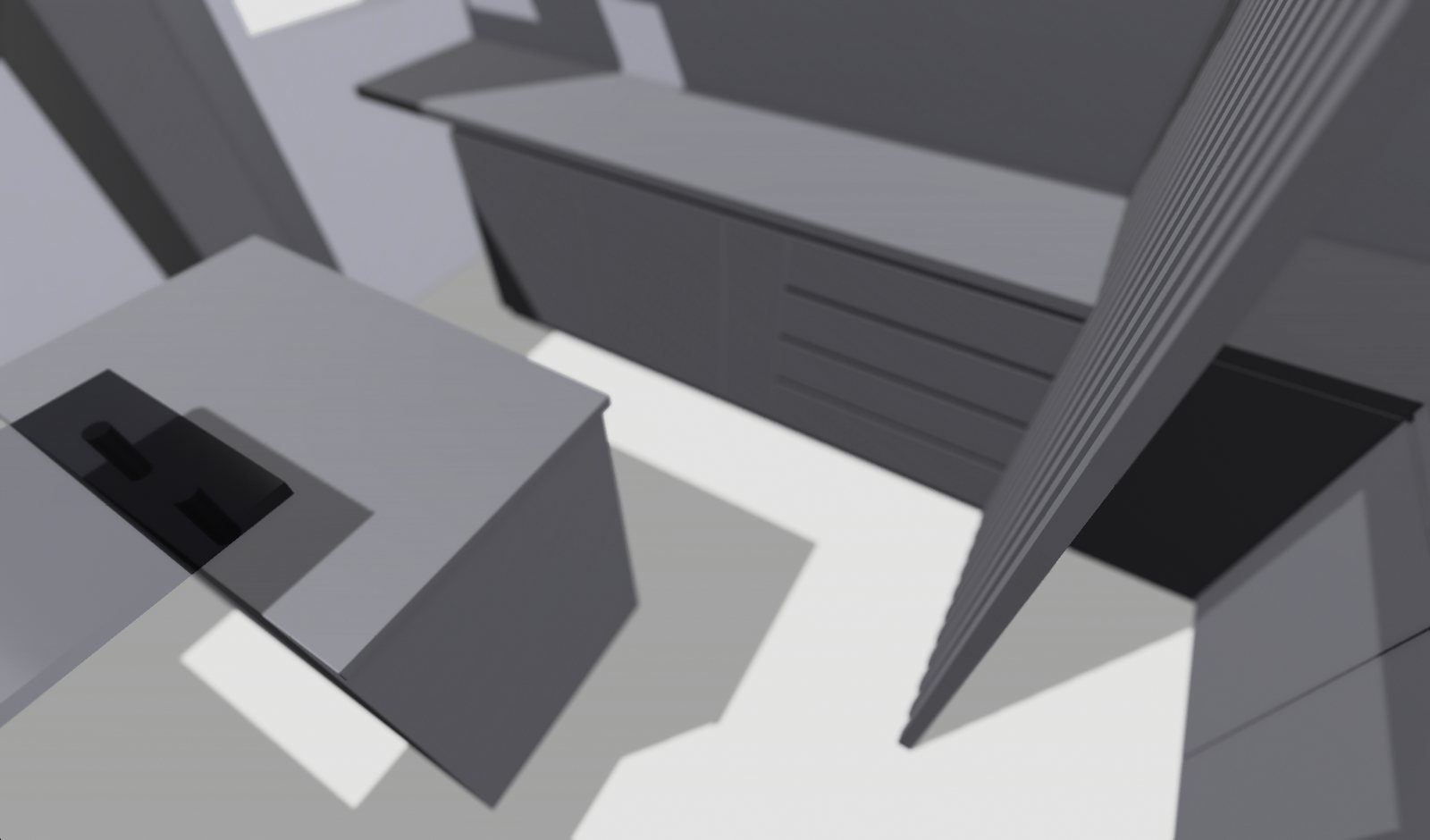

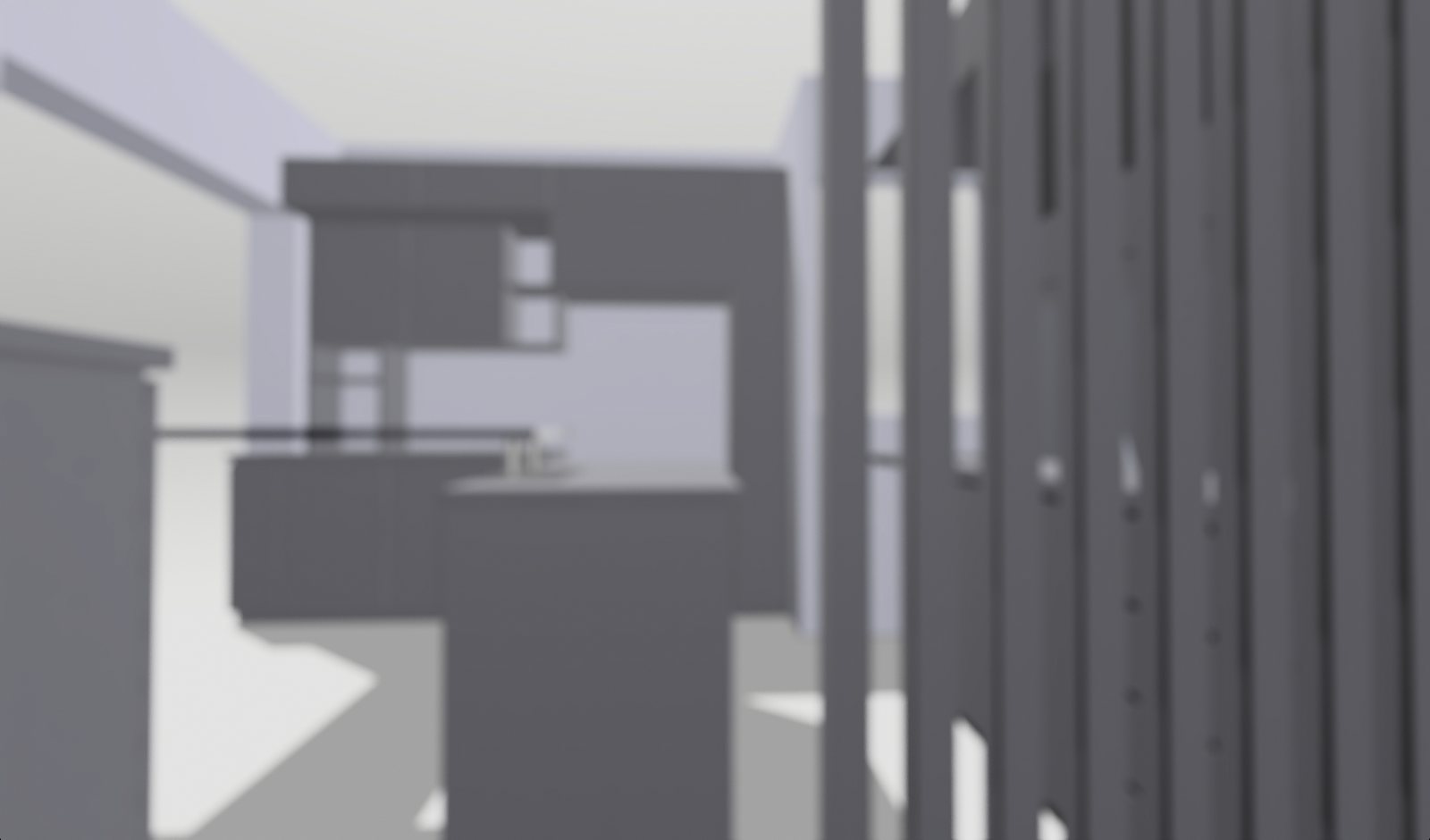

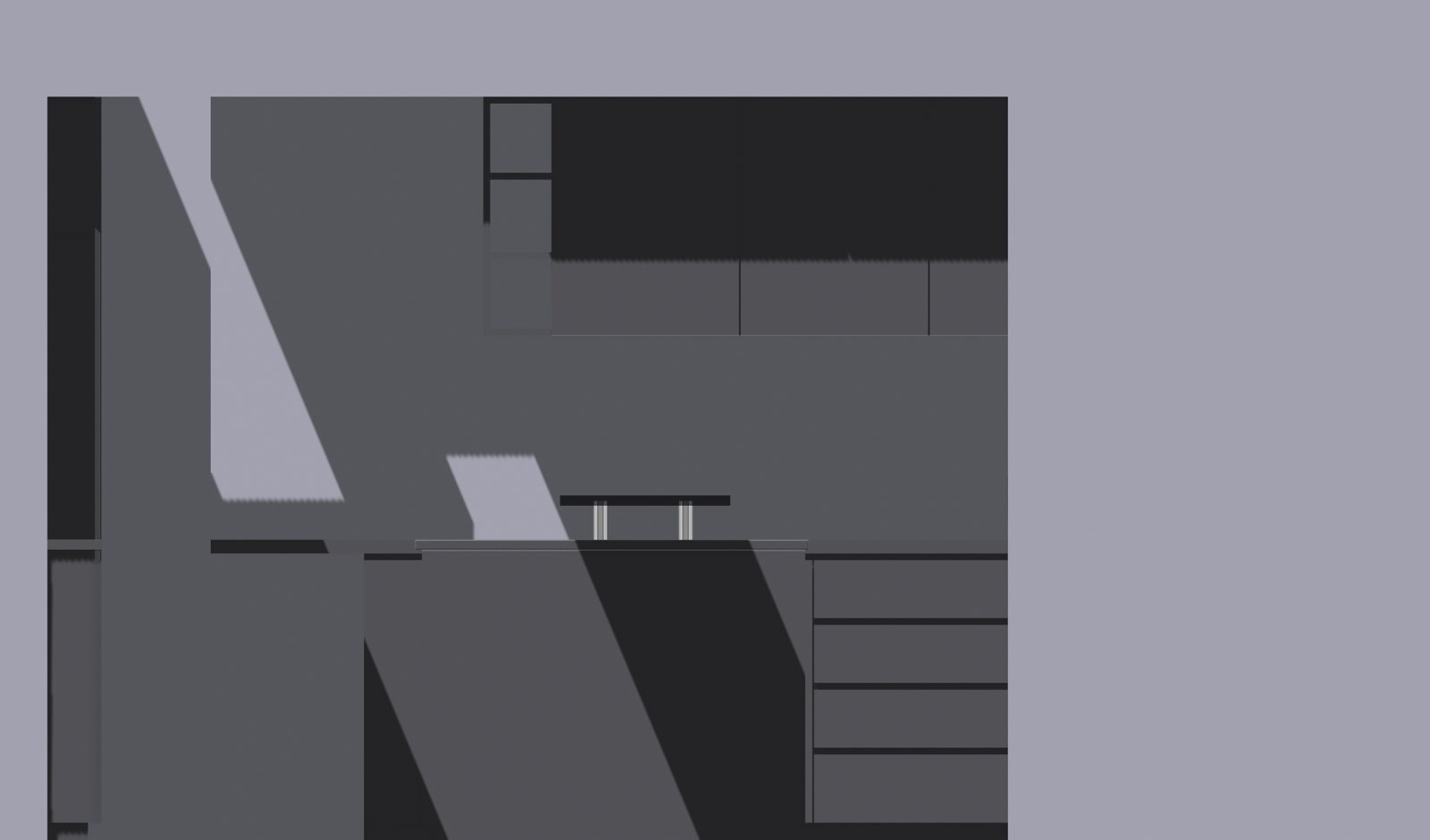

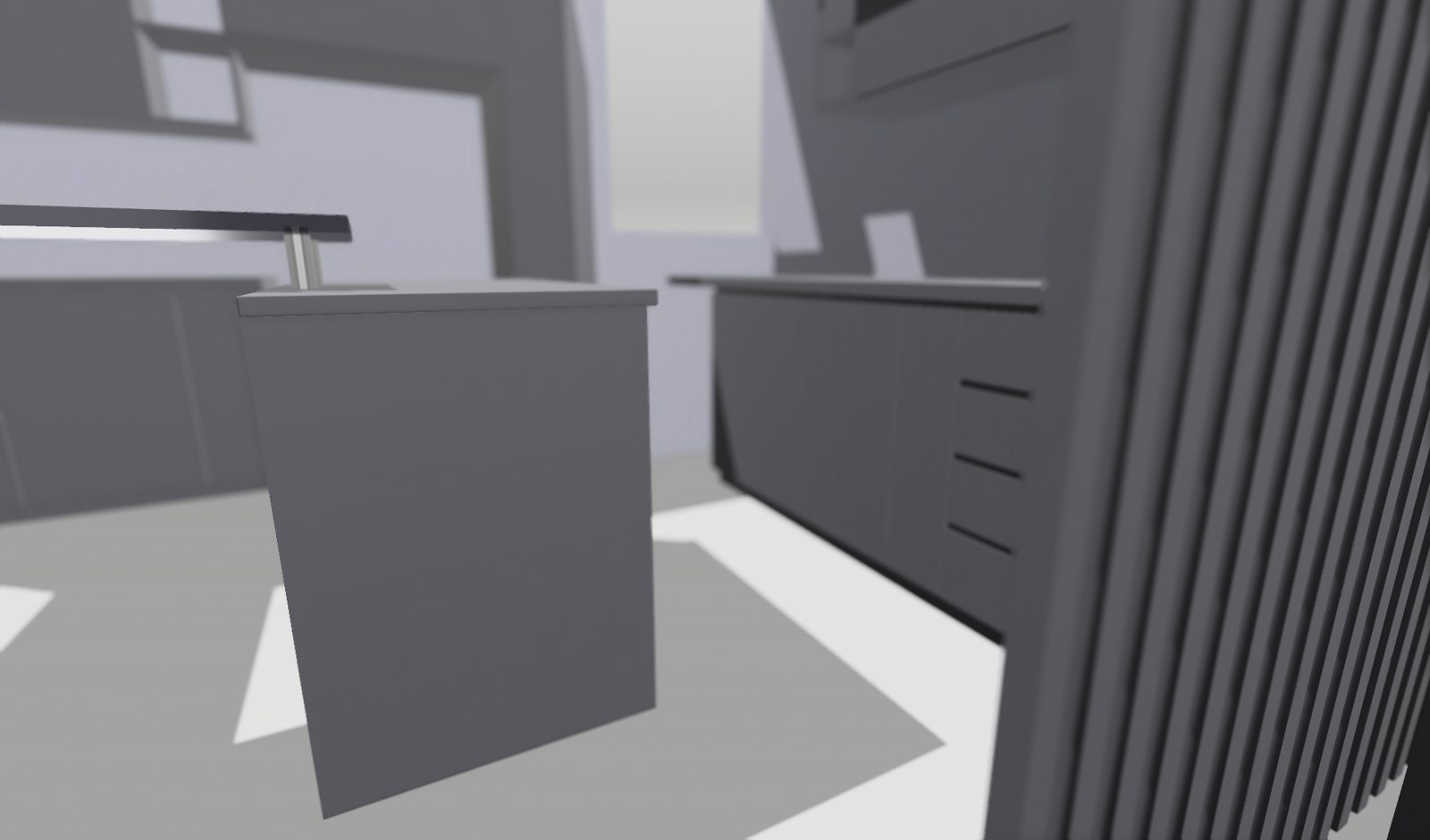

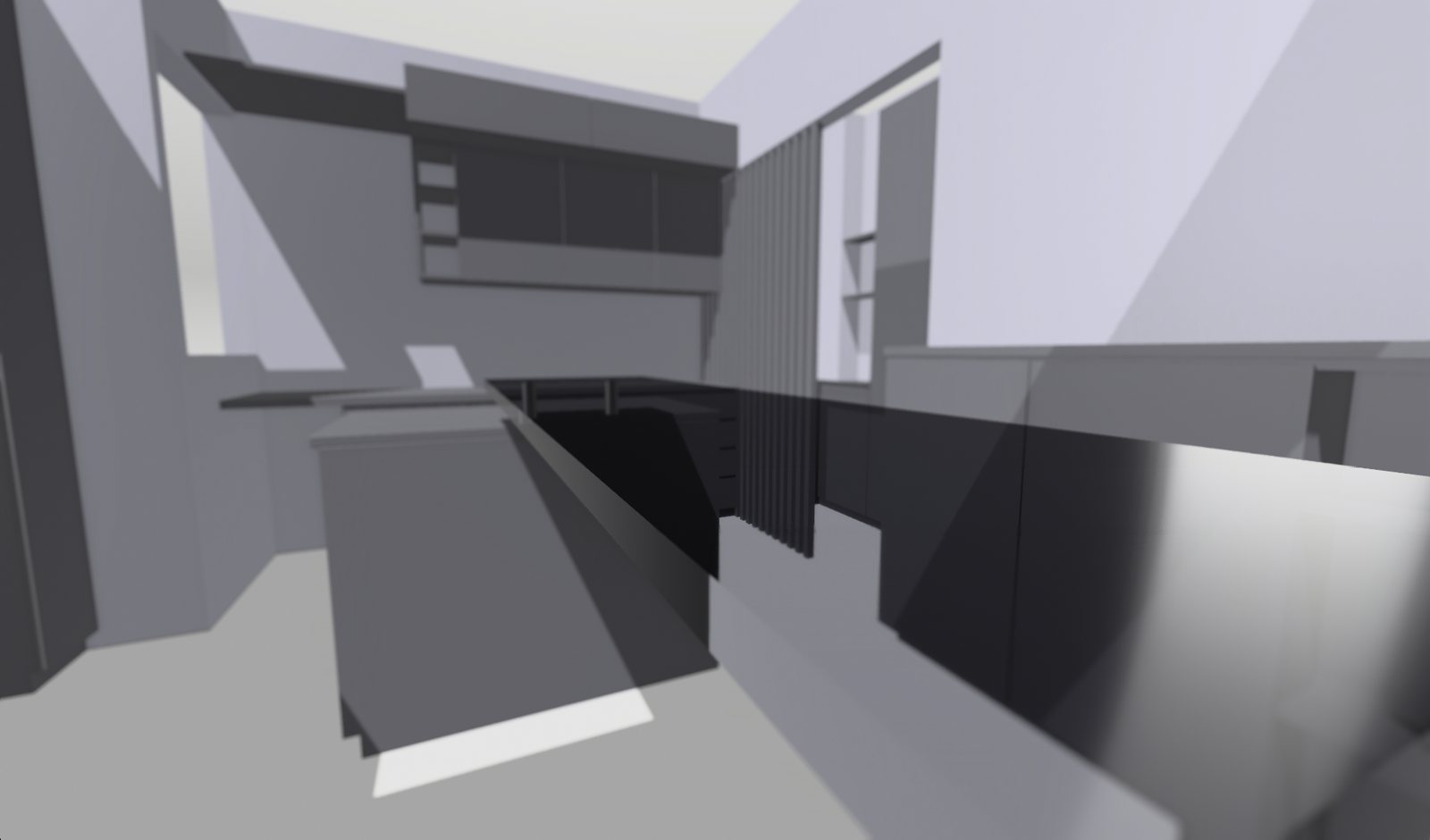

3D study of the kitchen, island and wall units 3D study from above the island 3D study past the slatted panel 3D study of the cabinet wall 3D study with slatted panel in the foreground
Project

What was delivered

Two layout options, plan and elevation drawings, and a 3D study of the revised kitchen.

Hire on Upwork
  • Unfolded plan and elevations Drawings
  • Design 1 and revised design Options
  • 13.5 m² to 15.5 m² Area
  • 3D volume study Visualisation
